Inside 941

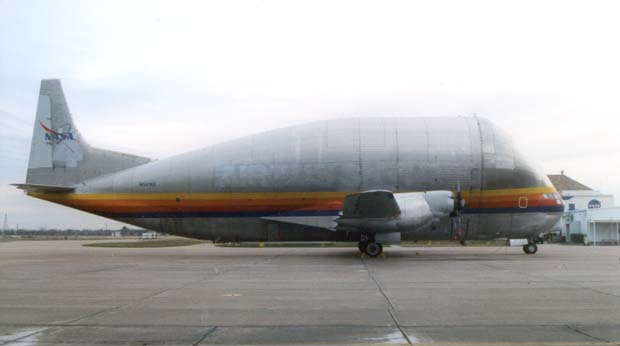

"The Guppy", parked on the flightline at NASA Hanger 990, Ellington Field, Houston, Texas.
(16K JPG image)

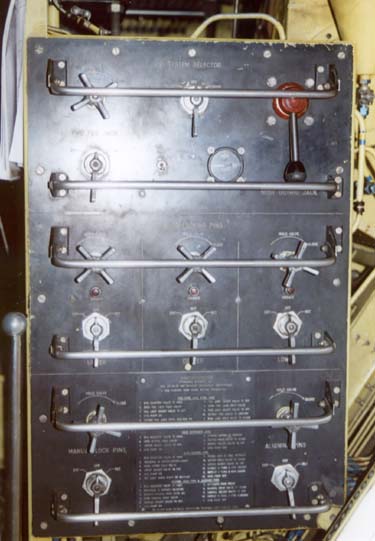

This is the hydraulic control panel used in controling the autolocks which lock the nose and
fuselage together. Notice the safety bars over the control knobs.
(31K JPG image)

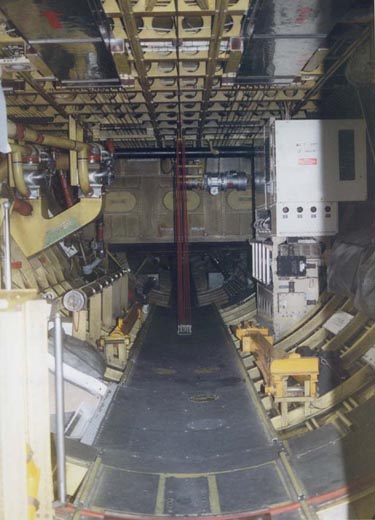

View of the forward lower cargo bay taken from the front looking aft. On the left you can see
the entry door. The large yellow bar on the right can be used to assist in closing the nose if
needed. On the left floor, notice the yellow tow bar. The silver item in the center is the
cargo winch. The large white cabinet is the power distribution cabinet. The red lines leading
from the floor to the ceiling are bungee cords used to keep the winch pulley from jumping.
The bulkhead seen behind the winch is the fuel cell. The orange line at the bottom on the floor
is the nose/fuselage seal.
(66K JPG image)

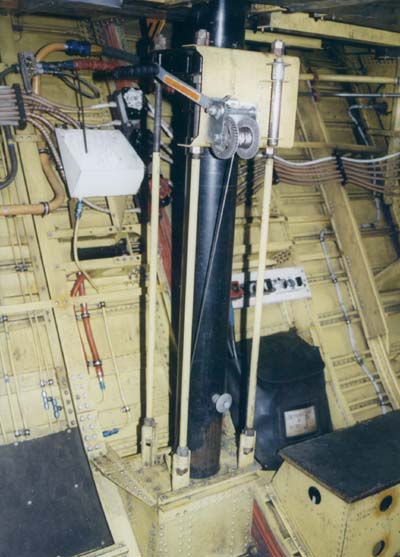

This is the port Outrigger Fuselage Support. Notice the hand crank and cable used to raise
and lower the support. The orange rubber seal you see is the actual seam for sealing the
nose/fuselage.
(40K JPG image)

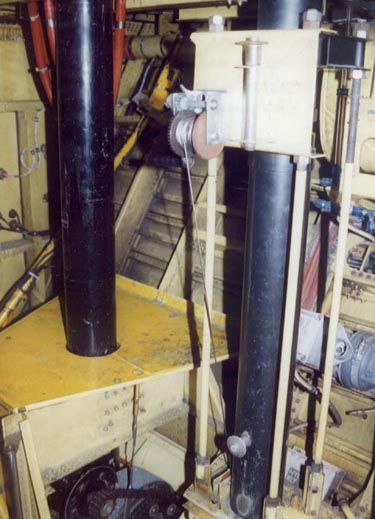

The starboard Outrigger Fuselage Support and Nose Door Drive Motor (surrounded by the yellow
platform) are seen in this picture. The Drive Motor is used when opening and closing the nose
during cargo operations.
(41K JPG image)

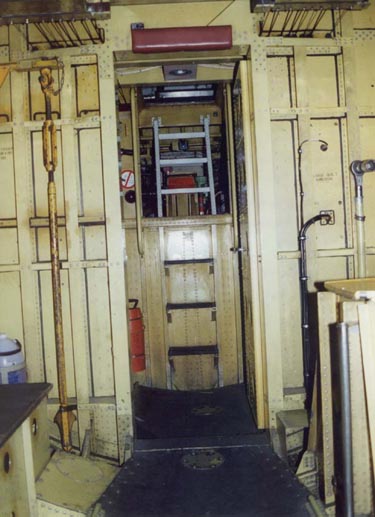

This is the lower ladder leading from the lower cargo bay to the cockpit, taked looking forward
from just in front of the forward entry door standing between the Forward Fuselage Outriggers.
The large ratchet/socket wrench seen on the right is used to loosen the bolts that hold the nose
and fuselage together, with an equally large torque wrench, not seen here, which is used to re-
tighten the bolts after closing the nose door. The long yellow rod you see on the left is used
to hold the nose wheel at a set angle when closing the nose.
(39K JPG image)

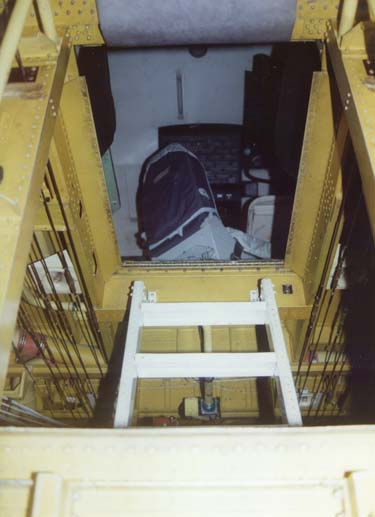

This picture is taken looking up from the lower cargo bay (it's not really a cargo bay, it's
actually the entrance for the aircraft). The seat seen through the access door is the flight
engineer's seat. The small ladder is on the mid-deck platform. The mid-deck platform is an open
area below the cockpit where all of the flight control cables transverse.
(24K JPG image)
View of the forward cockpit area, taken from the rear of the cockpit just in front of the cargo
bay door. The visibilty for the pilots is excellent.
(39K JPG image)

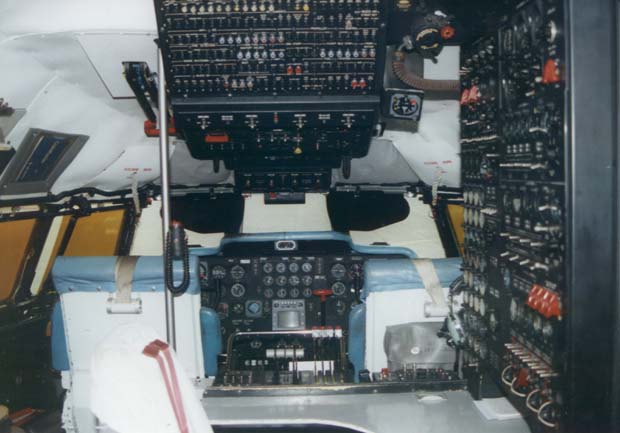

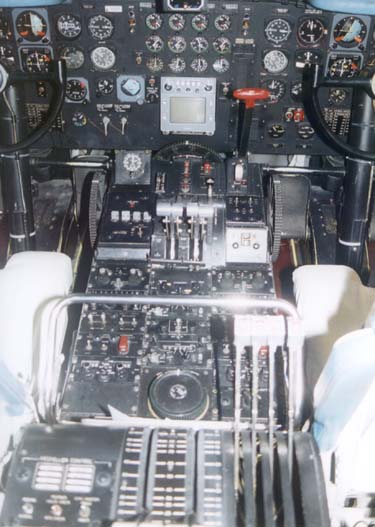

This picture shows the instrument panel and radio control console taken from the flight
engineer's station. The red handled control is the Gust Lock, this is used to lock the flight
control surfaces in place on the ground to prevent them from getting slammed around in high
winds when the aircraft is parked. Also seen are the engine power controls.
(39K JPG image)

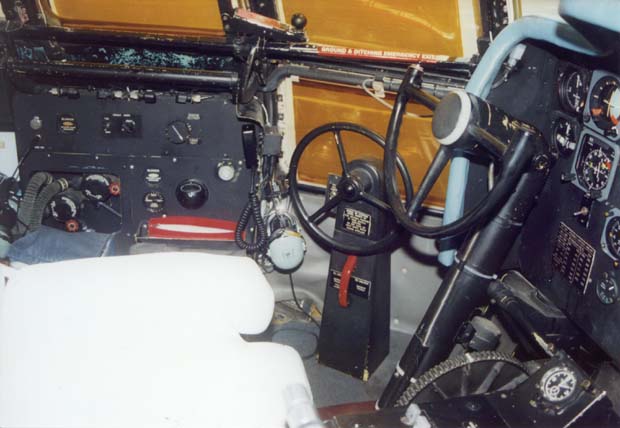

The nosewheel steering is on the pilot's side of the cockpit only. Steering couldn't be easier.
The red handle seen just below the nose steering wheel is the steering engage/disengage lever.
(40K JPG image)

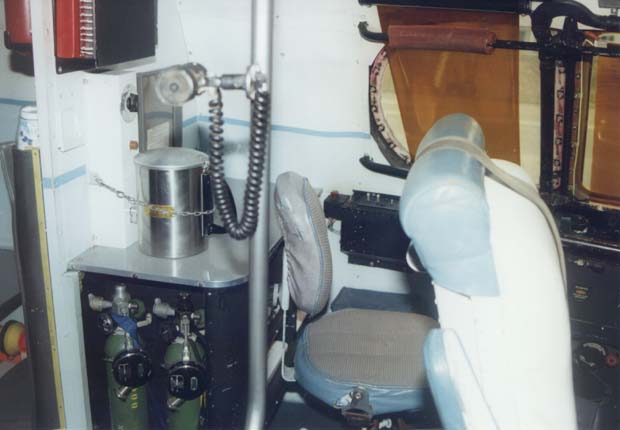

Seen here is the observer's seat located behind and just to the left of the pilot's seat. The
silver cannister is the crew coffee pot.
(30K JPG image)

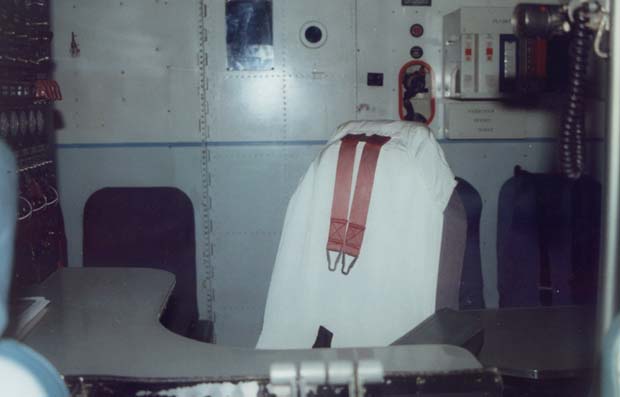

This is the flight engineer's seat. Directly behind the FE's seat you can see the door leading
to the cargo bay. To the left and right of the door is the aft area seating.
(20K JPG image)

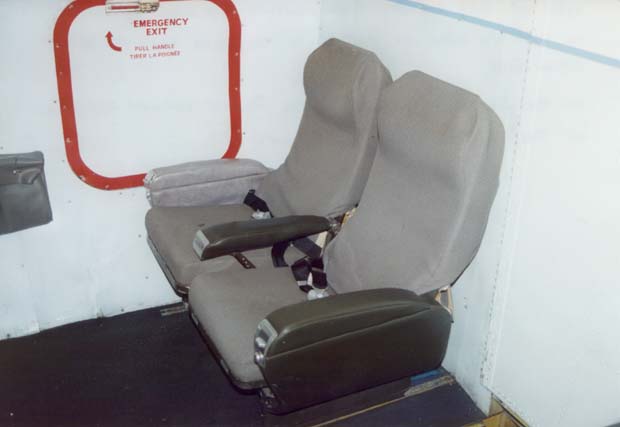

This picture shows the starboard aft area seating. On the right is the cargo bay door, with the
emergency exit seen to the left of the seats. Just seen on the bottom right portion of the
picture is a part of the cockpit entry ladder well.
(18K JPG image)

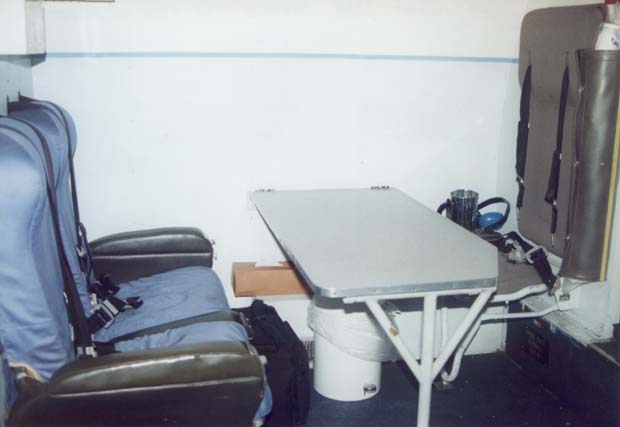

Seen here is the port aft area seating with work table and jump seat.
(22K JPG image)

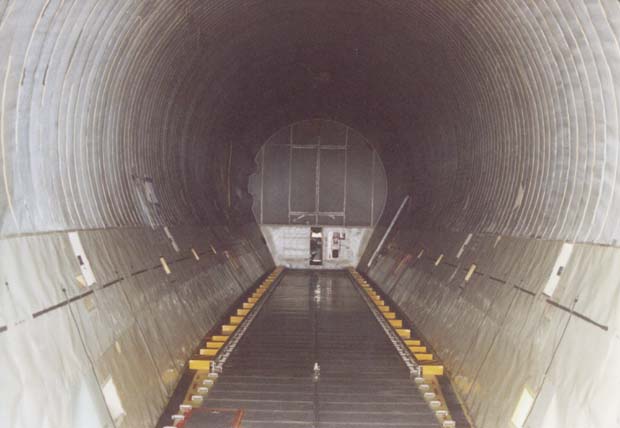

This is the cargo bay seen just inside of the cargo bay door looking aft. On both sides of the
picture are the emergency exits which lead out over the wings.
(79K JPG image)

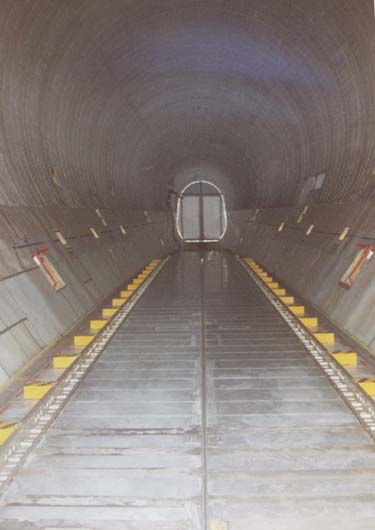

This is the cargo bay as seen from the rear looking forward. The yellow boxes on the floor are
the hydraulic auto locks used to lock the Guppy pallets in place for flight. The red line on the
floor is one of the hatches leading down to the rear cargo bay. The line running up the center
of the floor is the winch cable used to pull cargo in or out of the Guppy.
(30K JPG image)
