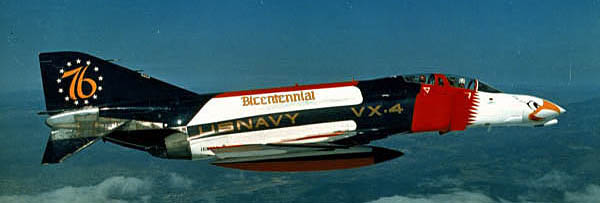

F-4 Phantom II
by Daren Savage


The F-4 Phantom II is designed for Kyosho fan and AP29L motor using the AstroFlite Model 210 Speed Controller and 7- CP1300 or CP1700 zapped cells, to be decided at a later date. This model is an extremely simple and quick building model designed especially for the many flyers out there with components left over from Kyosho's T-33 or F-16, but no airplane to put them in.

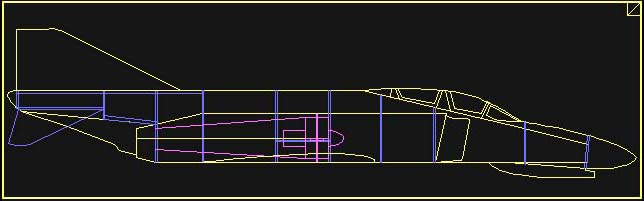

My plans will also includes the mounting flanges which are epoxied to the Kyosho fan unit to make mounting the fan unit inside the F-4 Phantom a bit more conventional. Converting it to use the WeMoTec Mini Fan 480 and a hotter motor would be an easy modification, though this would need to be done during the building stage.




Basic specifications:

Length: 49 inches
Wingspan: 29 inches
Wing Area: 345 sq. in.
Projected Weight: 32 oz.
Projected Wing Loading: 15 oz./sq. ft.
Fan Unit/Motor: Kyosho Fan/AP-29L
Batteries: 7- CP1300 or CP1700 (Zapped)
Speed Controller: AstroFlite Model 210

Channels: 3 (ailerons, elevator, throttle)
Bulkheads: Lite Ply & Balsa sheet
Tail feathers: 1/8" Balsa sheet
Wings: Balsa sheeted foam cores w/ailerons
